iMX_C4FD_C_INCH
（Duplex corner radius head, 4 flute, For high feed, with coolant hole）

IMX25C4FD1000MC EDP:10565537

Product Information

  • The duplex corner radius and 4 flute geometry enables efficient machining at higher feed rates.
  • End face center coolant hole provides a stable supply of coolant.
  • Duplex corner radius end mill is not suitable for corner radius machining due to the possibility of leaving unmachined areas.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade EP7020
Sales unit 1
Stock
Unit of Length I

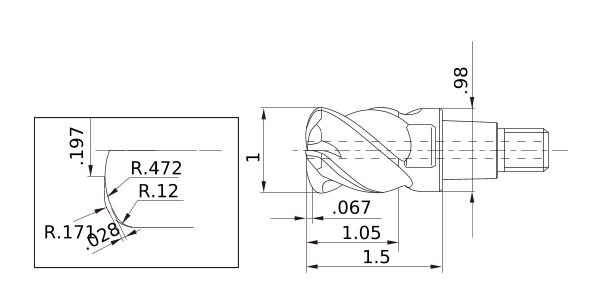

A3 1.05
DC 1
DCON .98
DCIN .197
RMPX 4.5°
LH 1.5
S10 .028
APMX .067
FHA 45°
RE1 .171
RE2 .12
RE3 .472
Peripheral effective cutting edge count: ZEFP 4
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0012
