VFR2SB
(Ball nose, Short cut length, 2 flute)

VFR2SBR1000 EDP:10568170

Product Information

  • Optimization of the cutting edge curve, helix angle, and rake angle have improved the edge strength at all areas of the ball blades.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Stock
Unit of Length M

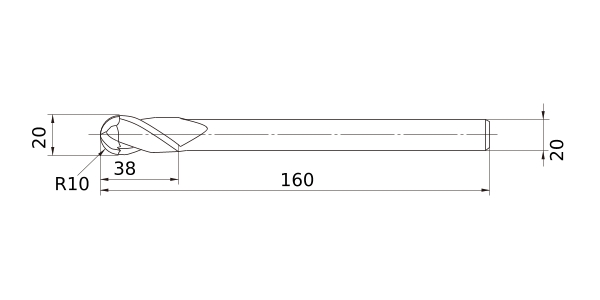

DC 20
DCON 20
LF 160
APMX 38
FHA 20°
RE 10
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -0.01
R Tolerance + 0.01
Coated VFR
2D Model (DXF)
CAD data name Download
VFR2SBR1000
CAD

3D Light Model (STP,STL)
CAD data name Download
VFR2SBR1000
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
