MPXLRB
（Corner radius, Short cut length, Long neck）

MPXLRBD0100R010N120 EDP:10570920

Product Information

  • Suitable for high precision and high efficient machining of die & mold.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1

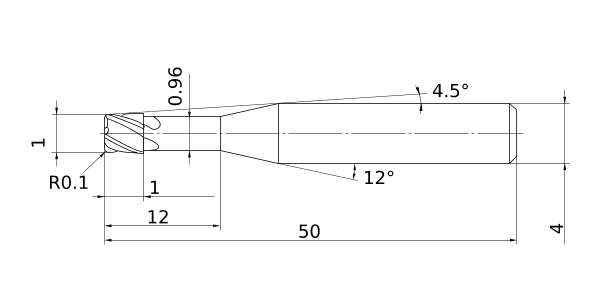

Unit of Length M
DC 1
DCON 4
DN 0.96
B2 4.5°
BHTA2 12°
LF 50
LU 12
APMX 1
FHA 30°
RE 0.1
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -0.005
R Tolerance + 0.005
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.01
Coated MS+
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
