WSX445
（GENERAL CUTTING）

WSX445L25010KN EDP:10583395

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock

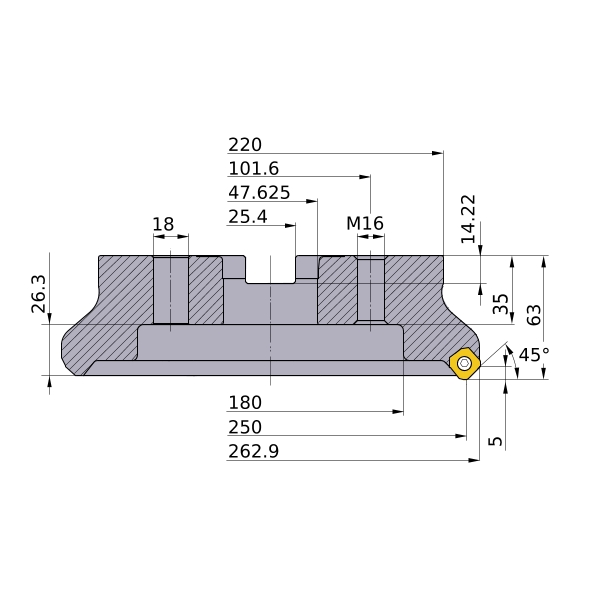

Unit of Length M
DC 250
DCX 262.9
DCON 47.625
DCSFMS 220
DAH 18
DCCB 180
KAPR 45°
L8 14.22
LF 63
CBDP 35
LCCB 26.3
KWW 25.4
APMX 5
GAMP -6°
GAMF -10°
WT 13.1
CRKS M16
DBC 101.6
Peripheral effective cutting edge count: ZEFP 10
3D Detail Model (STP,STL)
CAD data name Download
WSX445L25010KN
CAD
