Mitsubishi Materials | Products Information

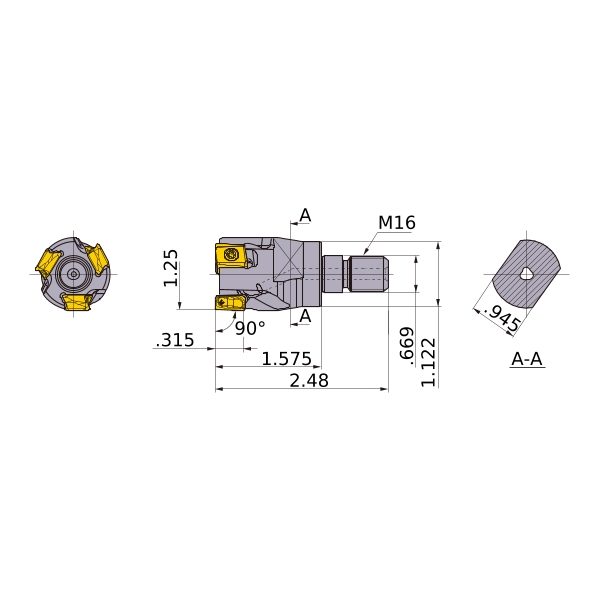

By arranging the inserts tangentially, high holder rigidity is secured.
Different types of milling cover a wide variety of situations.

Diameter ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

Sales unit

1

Hand

R

Stock

Unit of Length

I

DC

1.25

DCON

.669

DCSFMS

1.122

KAPR

90°

RMPX

0.71°

LF

1.575

OAL

2.48

S10

.945

APMX

.315

WT

0.5

CRKS

M16

Cutting item count: CICT

4

Peripheral effective cutting edge count: ZEFP

4

Face effective cutting edge count: ZEFF

4

2D Model (DXF)
CAD data name	Download
