GY2G0300F005N-GL EDP:10603574

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade RT9010
ANSI GY2G0300F005N-GL
Sales unit 10
Hand N
Stock

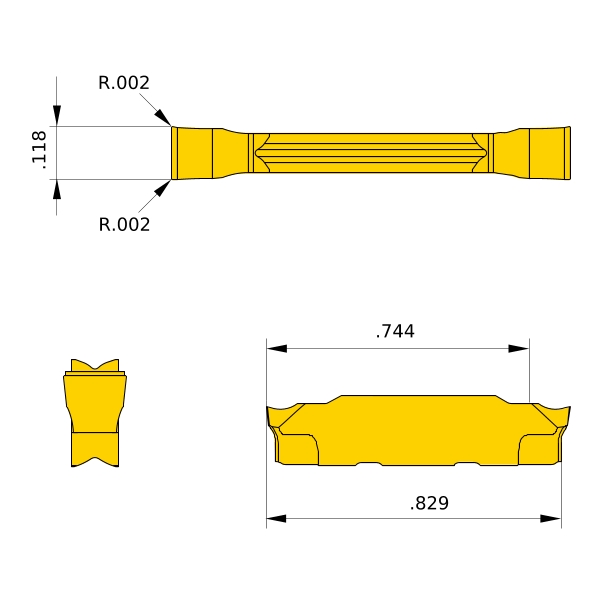

Unit of Length I
CDX .744
L .829
CW .118
REL .002
RER .002
Breaker GL
Tolerance REL:±.0012 RER:±.0012 CW:±.0008 L:±.002
2D Model (DXF)
CAD data name Download
GY2G0300F005N-GL
CAD

3D Detail Model (STP,STL)
CAD data name Download
GY2G0300F005N-GL
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
