DWAE
（Solid Carbide Drill for Swiss-type Automatic & Small CNC Lathes WSTAR Drill Series）

DWAE0430X04S050 EDP:10608593

Product Information

  • Optimal flute length for swiss-type automatic and small CNC lathes.
  • Low cutting resistance design.
  • The proprietary web thinning geometry ensures wide space for chip evacuation and offers low thrust.
  • Excellent lubricity and heat resistance, and excellent wear resistance especially under low to medium cutting speeds.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP102A
Sales unit 1
Stock

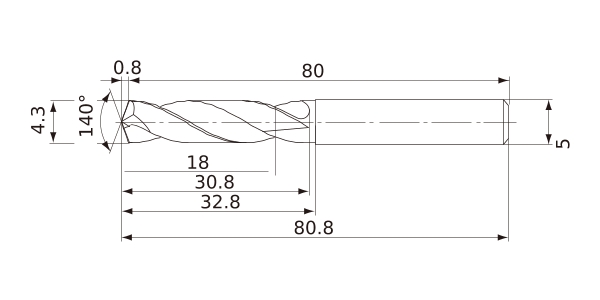

Unit of Length M
DC 4.3
DCON 5
SIG 140°
LF 80
OAL 80.8
LH 32.8
LU 18
LCF 30.8
FHA 30°
ld 4
PL 0.8
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.018
Type of Coolant External
2D Model (DXF)
CAD data name Download
DWAE0430X04S050
CAD
