WJX09
(Double-sided Insert Type High Feed Radius Milling Cutter)

WJX09R4003SA32EL EDP:10618189

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length M

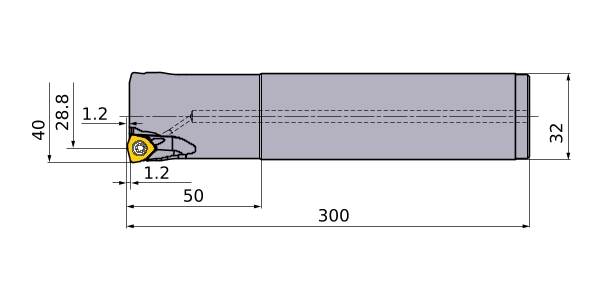

AZ 1.2
DC 28.8
DCX 40
DCON 32
RMPX 2.9°
LF 300
LH 50
APMX 1.2
GAMP -6°
GAMF -11°
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
RPMX 23200
2D Model (DXF)
CAD data name Download
WJX09R4003SA32EL
CAD

3D Detail Model (STP,STL)
CAD data name Download
WJX09R4003SA32EL
CAD

3D Light Model (STP,STL)
CAD data name RE Download
WJX09R4003SA32EL_MR1_2
1.2 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
