WJX09_INCH
(Double-sided Insert Type High Feed Radius Milling Cutter)

WJX09UR1.5004SA EDP:10618509

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock

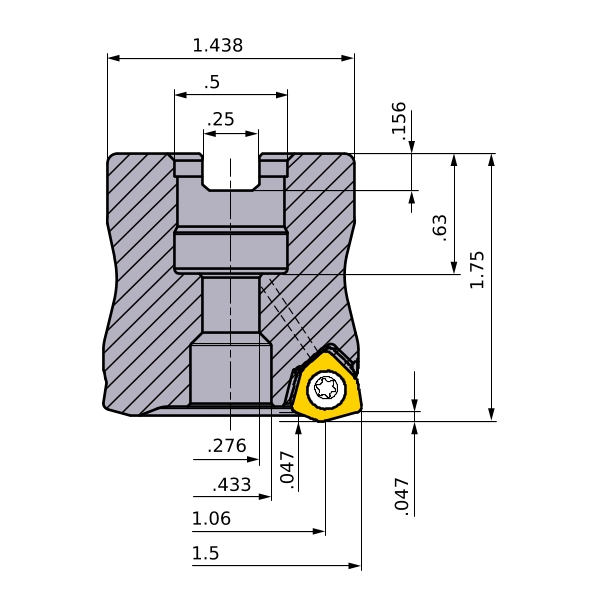

Unit of Length I
AZ .047
DC 1.06
DCX 1.5
DCON .5
DCSFMS 1.438
DAH .276
DCCB .433
RMPX 3.1°
L8 .156
LF 1.75
CBDP .63
LCCB .695
KWW .25
APMX .047
GAMP -6°
GAMF -10°
WT 0.5
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
RPMX 24000
2D Model (DXF)
CAD data name Download
WJX09UR1.5004SA
CAD

3D Detail Model (STP,STL)
CAD data name Download
WJX09UR1_5004SA
CAD

3D Light Model (STP,STL)
CAD data name RE Download
WJX09UR1_5004SA_IR0_047
.047 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
