GWS00
(External for Swiss-type Automatic Lathes)

GWSL1915K00-F38 EDP:10630822

Product Information

  • Highly Reliable Insert Clamping
  • High-Rigidity Holder

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Stock
Unit of Length M

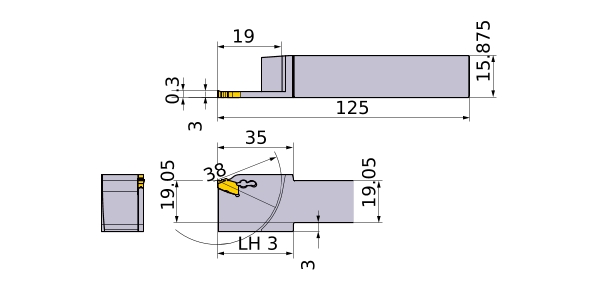

CUTDIA 38
B 15.875
LF 125
LH 35
CDX 19
WF 0.3
H 19.05
HF 19.05
HBH 3
CW 3
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download
GWSL1915K00-F38
CAD

3D Detail Model (STP,STL)
CAD data name Download
GWSL1915K00-F38
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
