GWS00
(External for Swiss-type Automatic Lathes)

GWSL2020K00-E42-M EDP:10630952

Product Information

  • Highly Reliable Insert Clamping
  • High-Rigidity Holder

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Stock
Unit of Length M

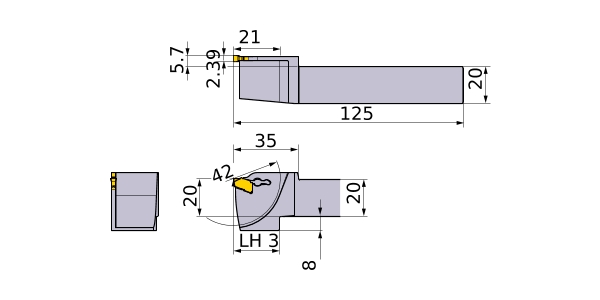

CUTDIA 42
B 20
LF 125
LH 35
CDX 21
WF 5.7
H 20
HF 20
HBH 8
CW 2.39
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download
GWSL2020K00-E42-M
CAD

3D Detail Model (STP,STL)
CAD data name Download
GWSL2020K00-E42-M
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
