DSAS
（Solid Carbide Drill for Machining Heat Resistant Alloys）

DSAS0490X03S060 EDP:10636169

Product Information

  • TRI-Cooling Technology
  • Straight Cutting Edge with Single-Pass Honing
  • New Grade for Machining of Heat Resistant Alloys DP9020
  • Special Margin

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP9020
Sales unit 1
Stock
Unit of Length M

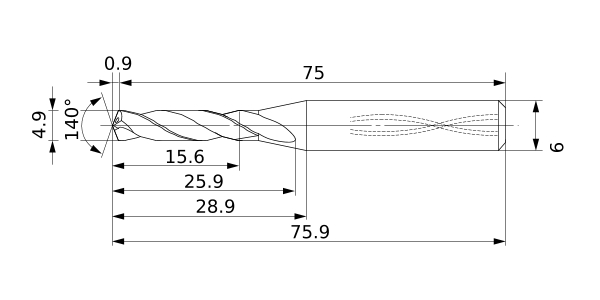

DC 4.9
DCON 6
SIG 140°
LF 75
OAL 75.9
LH 28.9
LU 15.6
LCF 25.9
FHA 30°
ld 3
PL 0.9
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.018
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
DSAS0490X03S060
