CNMG543 EDP:10636558

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MC6125
ANSI CNMG543
Sales unit 10
Hand N
Stock
Unit of Length I

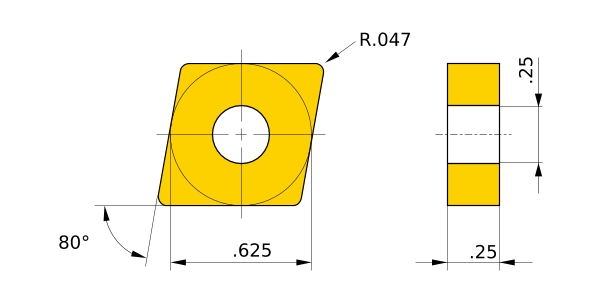

D1 .25
IC .625
EPSR 80°
S .25
RE .047
Breaker standard
Classification of Grades
Coated・Carbide UE6020
Coated・Carbide UE6035
Coated・Carbide UE6105
Coated・Carbide UE6110
Coated・Carbide MC6015
Coated・Carbide MC6025
Coated・Carbide MC6035
Coated・Carbide MC6115
Coated・Carbide MC6135
Coated・Carbide UC5105
Coated・Carbide UC5115
2D Model (DXF)
CAD data name Download
CN160612N
CAD
