SRDC_INCH


SRDCN-0808M EDP:106412

Product Information

  • Small shank toolholder system using a 5° , 7° and 11° positive inserts retained by screw-on system.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI SRDCN0808X
Sales unit 1
Hand N
Stock

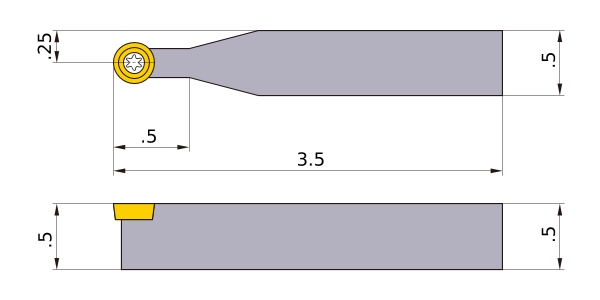

Unit of Length I
B .5
LF 3.5
LH .5
WF .25
H .5
HF .5
Peripheral effective cutting edge count: ZEFP 1
Insert Number RC__0803
2D Model (DXF)
CAD data name Download
SRDCN-0808M
CAD

3D Detail Model (STP,STL)
CAD data name Download
SRDCN-0808M
CAD

3D Light Model (STP,STL)
CAD data name RE Download
SRDCN-0808M_IR0_158
.158 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
