AJX
(MULTI FUNCTIONAL MILLING)

AJX06R326SA32S EDP:10654033

Product Information

  • Economical due to the use of 3 cutting edges.
  • Suitable for high feed cutting.
  • Excellent chip disposal due to the standardization of coolant hole.
  • High rigidity due to the employment of double clamp mechanics.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length M

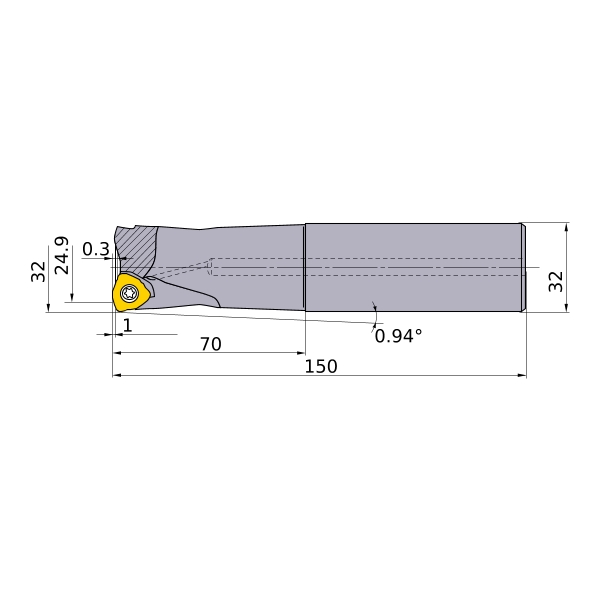

AZ 0.3
DC 24.9
DCX 32
DCON 32
B2 0.94°
RMPX 0.5
LF 150
LH 70
APMX 1
GAMP +5°
GAMF -7°
Cutting item count: CICT 6
Peripheral effective cutting edge count: ZEFP 6
2D Model (DXF)
CAD data name Download
AJX06R326SA32S
CAD

3D Detail Model (STP,STL)
CAD data name Download
AJX06R326SA32S
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AJX06R326SA32S_MR1_5
1.5 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
