AJX
(MULTI FUNCTIONAL MILLING)

AJX08R354AM1645 EDP:10654255

Product Information

  • Economical due to the use of 3 cutting edges.
  • Suitable for high feed cutting.
  • Excellent chip disposal due to the standardization of coolant hole.
  • High rigidity due to the employment of double clamp mechanics.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length M

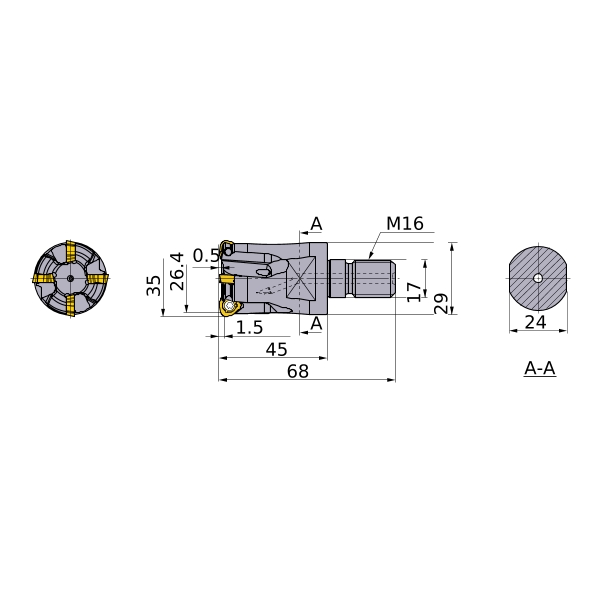

AZ 0.5
DC 26.4
DCX 35
DCON 17
DCSFMS 29
RMPX 1.2
LF 45
OAL 68
S10 24
APMX 1.5
GAMP +5°
GAMF -6°
WT 0.2
CRKS M16
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
2D Model (DXF)
CAD data name Download
AJX08R354AM1645
CAD

3D Detail Model (STP,STL)
CAD data name Download
AJX08R354AM1645
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AJX08R354AM1645_MR2_0
2 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
