SWLC_INCH


SWLCR-103 EDP:106572

Product Information

  • Small shank toolholder system using a 5° , 7° and 11° positive inserts retained by screw-on system.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SWLCR103A
Sales unit 1
Hand R
Stock

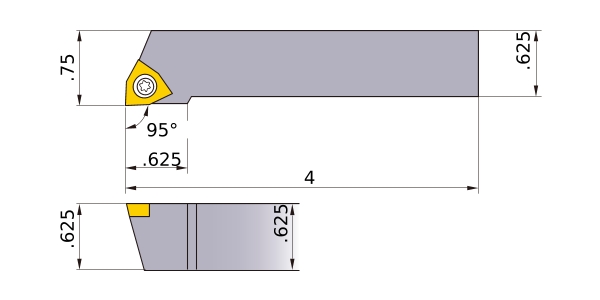

Unit of Length I
B .625
KAPR 95°
LF 4
LH .625
WF .75
H .625
HF .625
Peripheral effective cutting edge count: ZEFP 1
Insert Number WC__32.5
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
