NSE300_INCH


NSE300R0304C EDP:114818

Product Information

  • 20°positive insert.
  • High rake angle.

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

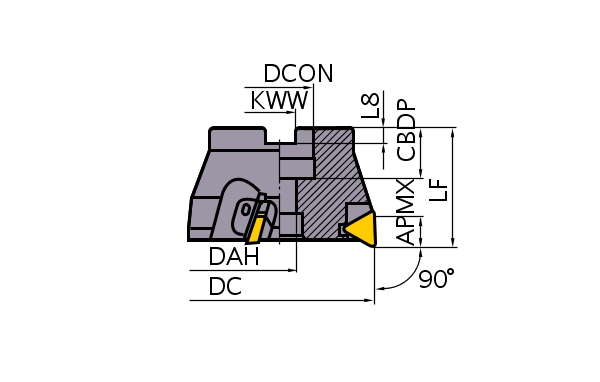

Unit of Length I
DC 3.15
DCON 1
DAH .512
KAPR 90°
L8 .219
LF 1.969
CBDP 1.024
KWW .375
APMX .492
WT 2.8
Peripheral effective cutting edge count: ZEFP 4
RPMX 13700

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
