MAS0570LB EDP:125616

Product Information

  • Pre-hole drilling for rolled tap.
  • Helical through coolant hole enables high speed machining (MAS type).
  • Specialized in aluminum and cast iron drilling.
  • High hole accuracy.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Sales unit 1
Stock
Unit of Length M

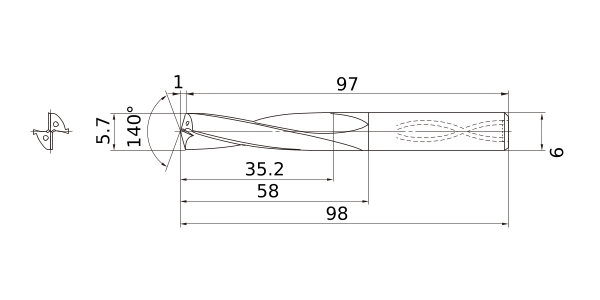

DC 5.7
DCON 6
SIG 140°
LF 97
OAL 98
LU 35.2
LCF 58
FHA 10°
ld 6
PL 1
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0.005
Min. Cutting EdgeDiameter Tolerance 0
Type of Coolant Internal
