APGT1604PDFR-G2 EDP:139707

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade HTi10
ANSI APGT1604PDFR-G2
Sales unit 10
Stock

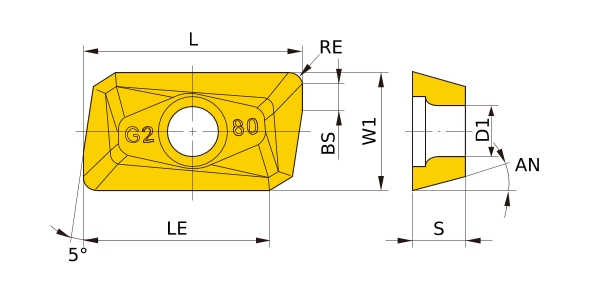

Unit of Length I
D1 .177
AN 11°
LE .551
L .67
W1 .375
BS .055
S .187
RE .031
2D Model (DXF)
CAD data name Download
APGT1604PDFR-G2
CAD

3D Detail Model (STP,STL)
CAD data name Download
APGT1604PDFR-G2
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
