M-SCLC_INCH


M-SCLCR-063 EDP:171889

Product Information

  • Steel, heavy metal and carbide shanks are available in various diameters.
  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw clamp type.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI H03F-SCLCR3
Sales unit 1
Hand R
Stock

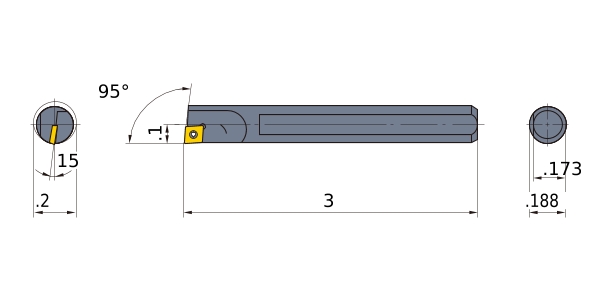

Unit of Length I
DMIN .2
DCON .188
KAPR 95°
LF 3
WF .1
H .173
GAMF 15
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__03S1
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
