M-SCLC_INCH


M-SCLCR-064 EDP:171900

Product Information

  • Steel, heavy metal and carbide shanks are available in various diameters.
  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw clamp type.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI H04H-SCLCR4
Sales unit 1
Hand R
Stock

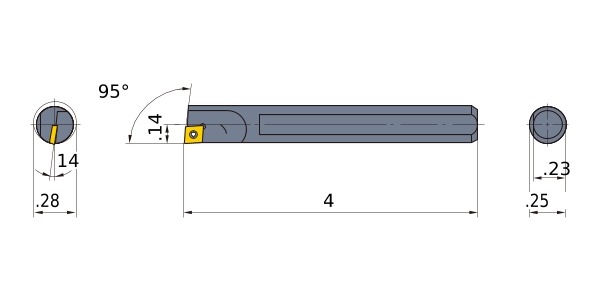

Unit of Length I
DMIN .28
DCON .25
KAPR 95°
LF 4
WF .14
H .23
GAMF 14
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__04T0
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
