GDCN2004PDFR3 EDP:173462

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade PCD
Grade MD220
ANSI GDCN2004PDFR3
Sales unit 1

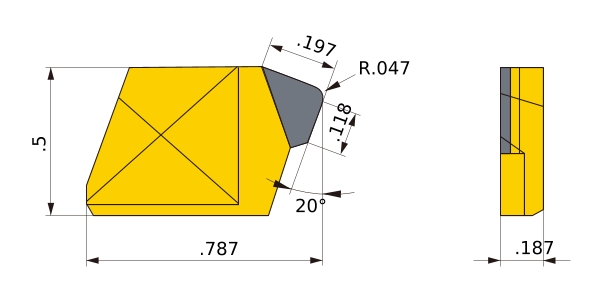

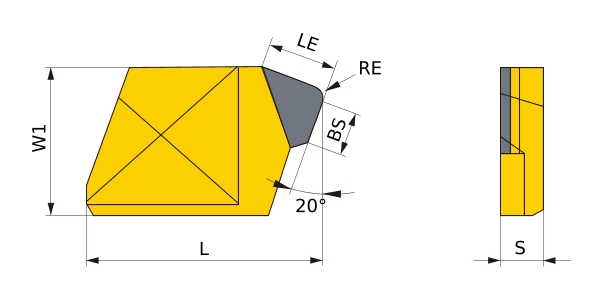

Unit of Length I
LE .197
L .787
W1 .5
BS .118
S .187
RE .047
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
