M-SWLO_C_INCH


M-SWLOL-163-C EDP:181171

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw clamp type.
  • Steel, heavy metal and carbide shanks are available in various diameters.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR

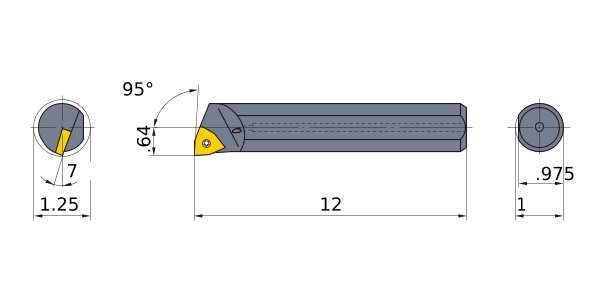

ANSI J16T-SWLOL3
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN 1.25
DCON 1
KAPR 95°
LF 12
WF .64
H .975
GAMF 7
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number WC__32.5
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
