MZE_MZS
MZE1100MA EDP:183804
Product Information
- Excellent chip disposal.
- Helical through coolant hole enables high speed machining (MZS type).
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15TF |
| Sales unit | 1 |
| Stock |
|
| Unit of Length | M |

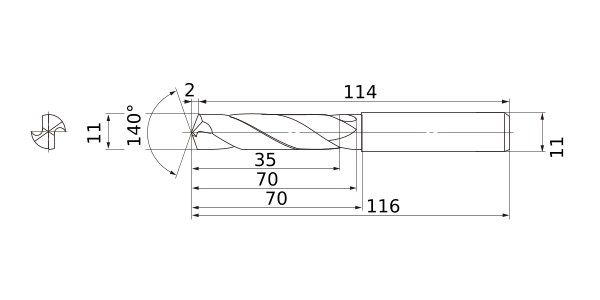

| DC | 11 |
| DCON | 11 |
| SIG | 140° |
| LF | 114 |
| OAL | 116 |
| LH | 70 |
| LU | 35 |
| LCF | 70 |
| FHA | 30° |
| ld | 3 |
| PL | 2 |
| Effective Cutting Edge | 2 |
| Max. Cutting EdgeDiameter Tolerance | 0 |
| Min. Cutting EdgeDiameter Tolerance | -0.027 |
| Type of Coolant | External |
| Classification of Grades | ||
|---|---|---|
| Non-coated・Carbide | HTi10 |
|
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
-
Recommended Cutting Condition
