JPMT060204-E EDP:185421

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade UP20M
ANSI JPMT060204-E
Sales unit 10
Stock

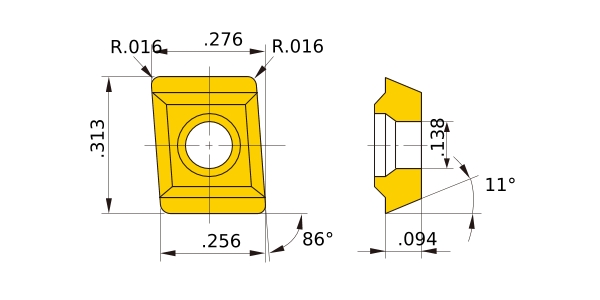

Unit of Length I
D1 .138
EPSR 86°
AN 11°
LE .256
L .276
W1 .313
S .094
RE .016
Classification of Grades
Coated・Carbide VP15TF
Non-coated・Carbide UTi20T
2D Model (DXF)
CAD data name Download
JPMT060204-E
CAD

3D Detail Model (STP,STL)
CAD data name Download
JPMT060204-E
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
