AQX


AQXR254SA25L EDP:190078

Product Information

  • Air coolant through.
  • The center bottom cutting edge enables drilling and end milling without prepared hole.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length M

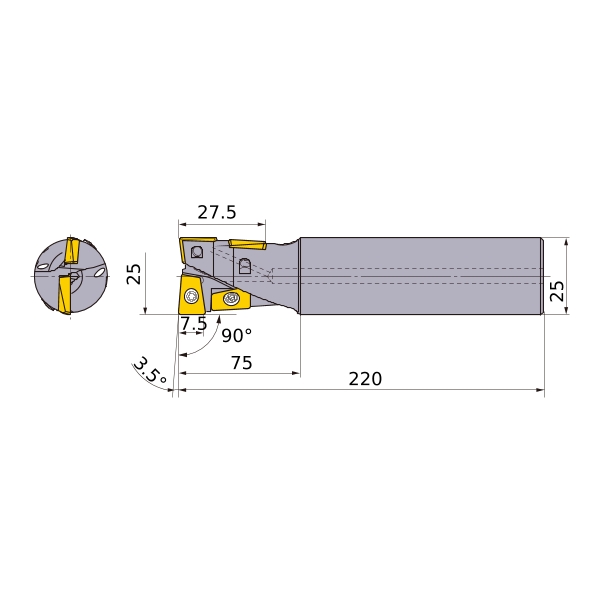

A3 7.5
DC 25
DCON 25
KAPR 90°
LF 220
LH 75
APMX 27.5
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 2
2D Model (DXF)
CAD data name Download
AQXR254SA25L
CAD

3D Detail Model (STP,STL)
CAD data name Download
AQXR254SA25L
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AQXR254SA25L_MR0_4
0.4 CAD CAD
AQXR254SA25L_MR0_8
0.8 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
