APMT1135PDER-H3 EDP:204231

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade F7030
ANSI APMT1135PDER-H3
Sales unit 10

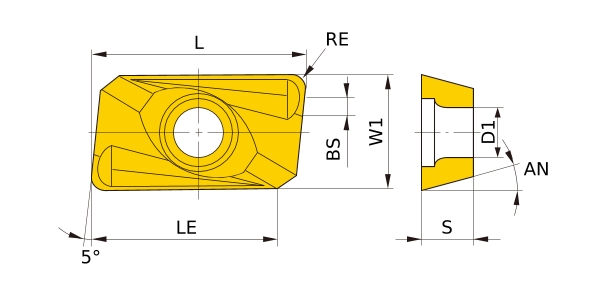

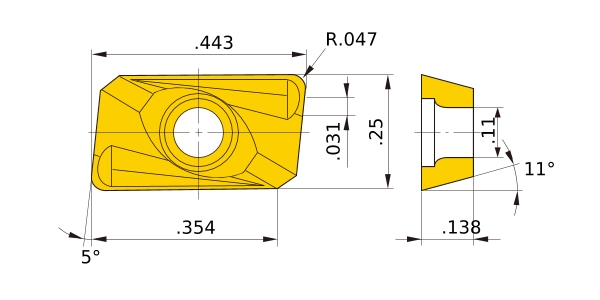

Unit of Length I
D1 .11
AN 11°
LE .354
L .443
W1 .25
BS .031
S .138
RE .047
