VDGX321RF EDP:205057

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade PCD
Grade MD220
ANSI VDGX321RF
Sales unit 1
Hand R
Stock

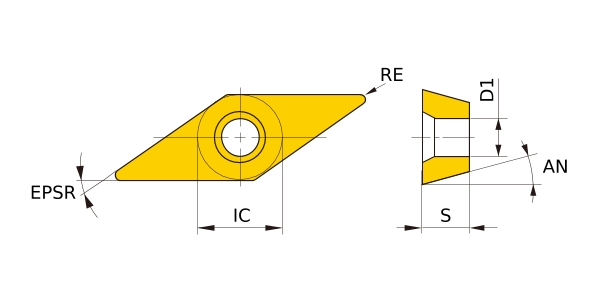

Unit of Length I

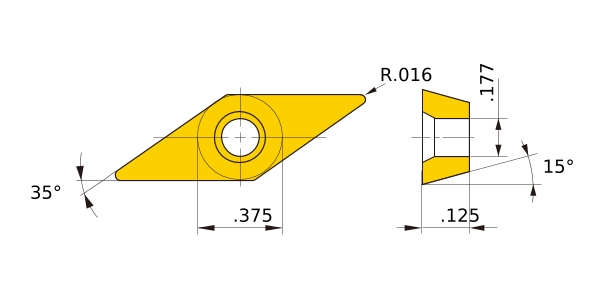

D1 .177
IC .375
EPSR 35°
AN 15°
CDX .079
LE .106
S .125
RE .016
Breaker R-F
2D Model (DXF)
CAD data name Download
VD160304R
CAD

3D Detail Model (STP,STL)
CAD data name Download
VD160304R
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
