C3XLAL
（End mill, 3 flute, Long neck, For aluminum alloys）

C3XLALD1100N330 EDP:22948199

Product Information

  • The cutting edge suppresses chatter and vibration, resulting in superior component surface finishes.
  • With a long neck geometry DC x 3 and DC x 5.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length M

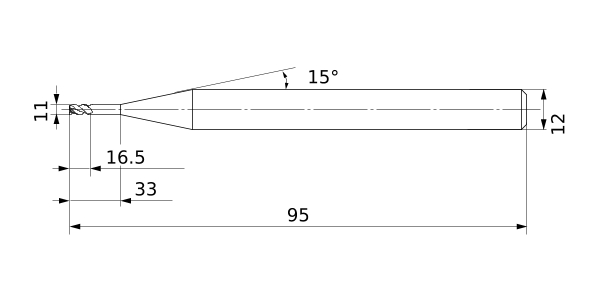

DC 11
DCON 12
BHTA2 15°
LF 95
LU 33
APMX 16.5
FHA 45°
Peripheral effective cutting edge count: ZEFP 3
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
2D Model (DXF)
CAD data name Download
C3XLALD1100N330
CAD
