VBGT330.2MFS-P EDP:22993960

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade MS9025
ANSI VBGT330.2MFS-P
Sales unit 10
Hand N
Stock

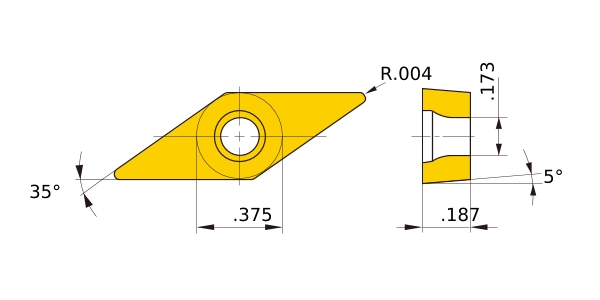

Unit of Length I
D1 .173
IC .375
EPSR 35°
AN
S .187
RE .004
Breaker FS-P
2D Model (DXF)
CAD data name Download
VB160401N
CAD

3D Detail Model (STP,STL)
CAD data name Download
VB160401N
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
