TPMH1.81.51FM EDP:23119963

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade VP30RT
ANSI TPMH1.81.51FM
Sales unit 10
Hand N
Stock

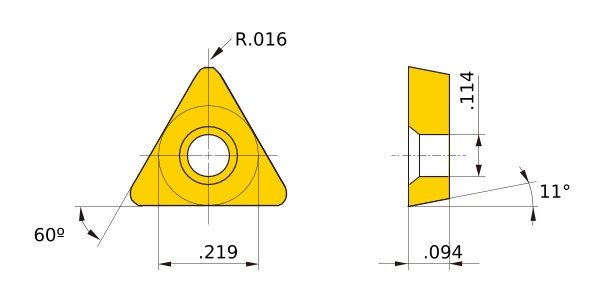

Unit of Length I
D1 .114
IC .219
EPSR 60º
AN 11°
S .094
RE .016
Breaker FM
2D Model (DXF)
CAD data name Download
TP090204N
CAD

3D Detail Model (STP,STL)
CAD data name Download
TP090204N
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
