VBMT220.5FS EDP:23181243

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade MP9025
ANSI VBMT220.5FS
Sales unit 10
Hand N
Stock

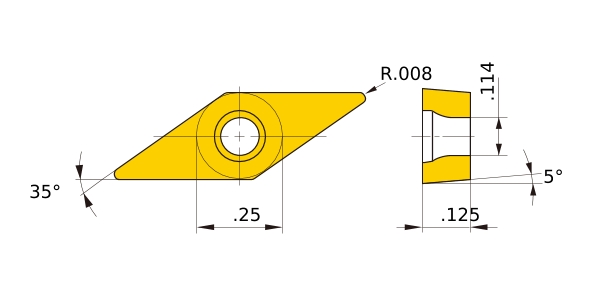

Unit of Length I
D1 .114
IC .25
EPSR 35°
AN
S .125
RE .008
Breaker FS
2D Model (DXF)
CAD data name Download
VB110302N
CAD

3D Detail Model (STP,STL)
CAD data name Download
VB110302N
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
