IMX16-A33GL55-BT30 EDP:23742130

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Stock

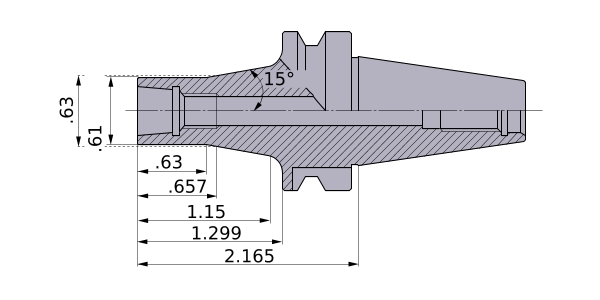

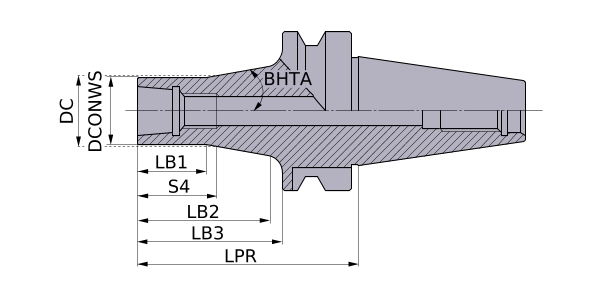

Unit of Length I
DC .63
DCONWS .61
BHTA 15°
LPR 2.165
LB1 .63
LB2 1.15
LB3 1.299
S4 .657
2D Model (DXF)
CAD data name Download
IMX16-A33GL55-BT30
CAD

3D Detail Model (STP,STL)
CAD data name Download
IMX16-A33GL55-BT30
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
