IMX20-A42GL64-BT30 EDP:23742161

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Stock
Unit of Length I

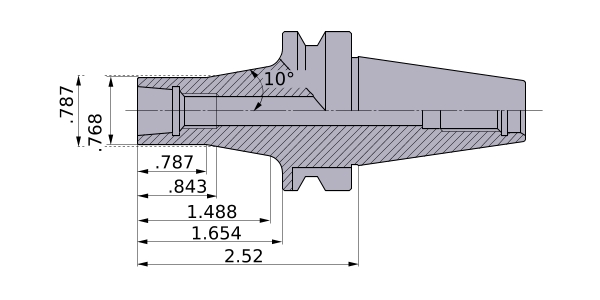

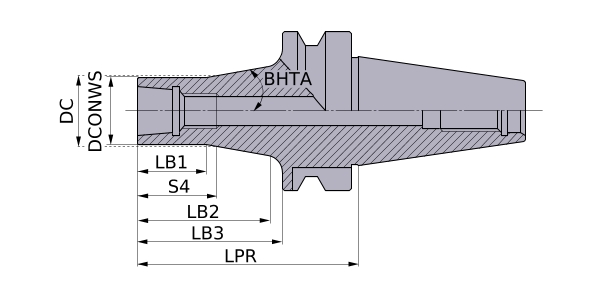

DC .787
DCONWS .768
BHTA 10°
LPR 2.52
LB1 .787
LB2 1.488
LB3 1.654
S4 .843
2D Model (DXF)
CAD data name Download
IMX20-A42GL64-BT30
CAD

3D Detail Model (STP,STL)
CAD data name Download
IMX20-A42GL64-BT30
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
