DVAS-MINI_INCH
（TRISTAR Drills）

DVAS0278X40S040 EDP:23795587

Product Information

  • Mini Size
  • TRI-Cooling is optimal for small-diameter drills and can achieve more than double the conventional coolant discharge volume.
  • Increased coolant flow provides effective cooling even in difficult applications or when using an oil based cutting fluid.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1120
Sales unit 1
Stock
Unit of Length I

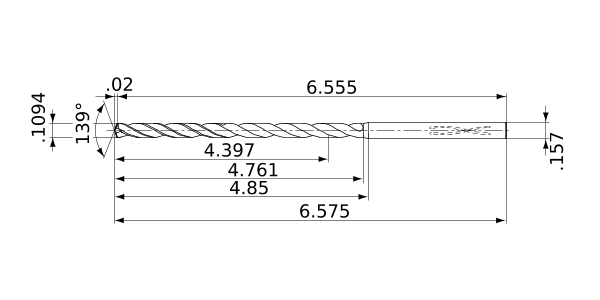

DC .1094
DCONMS .157
SIG 139°
LF 6.555
OAL 6.575
LH 4.85
LU 4.397
LCF 4.761
ld 40
PL .02
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0003
Type of Coolant Internal
