BL-CCGT32.52TN2 EDP:23883222

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Coated CBN
Grade BC8220
ANSI BL-CCGT32.52TN2
Sales unit 1
Hand N
Stock

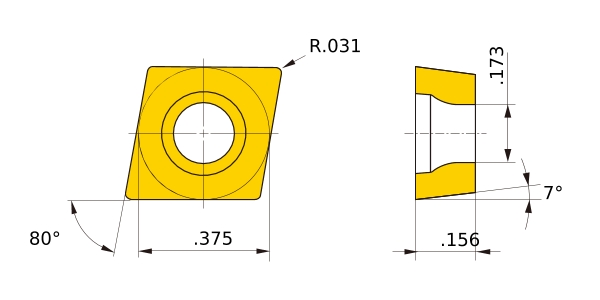

Unit of Length I
D1 .173
IC .375
EPSR 80°
AN
LE .079
S .156
RE .031
Breaker BL
2D Model (DXF)
CAD data name Download
CC09T308N
CAD

3D Detail Model (STP,STL)
CAD data name Download
CC09T308N
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
