DFAS
（Solid Carbide Flat Bottom Drills）

DFAS0900X05S090 EDP:23894587

Product Information

  • High efficiency drilling in various types of machining.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP102A
Sales unit 1
Stock
Unit of Length M

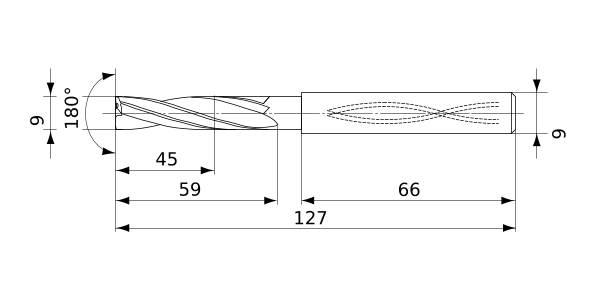

DC 9
DCON 9
SIG 180°
OAL 127
LU 45
LCF 59
LS 66
FHA 27°
ld 5
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.022
Type of Coolant Internal
