DFAS
(Solid Carbide Flat Bottom Drills)

DFAS1300X05S130 EDP:23894976

Product Information

  • High efficiency drilling in various types of machining.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP102A
Sales unit 1
Stock
Unit of Length M

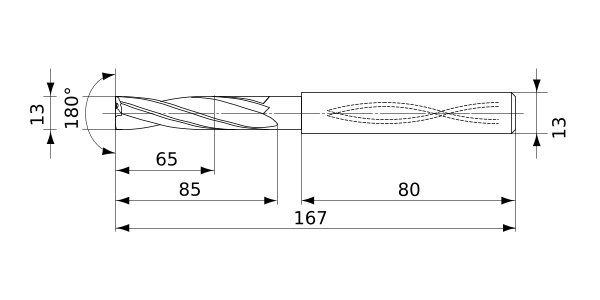

DC 13
DCON 13
SIG 180°
OAL 167
LU 65
LCF 85
LS 80
FHA 27°
ld 5
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.027
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
DFAS1300X05S130
CAD

3D Light Model (STP,STL)
CAD data name Download
DFAS1300X05S130
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
