DFAS_INCH
（Solid Carbide Flat Bottom Drills）

DFAS1389X05S140 EDP:23901513

Product Information

  • High efficiency drilling in various types of machining.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP102A
Sales unit 1
Stock
Unit of Length I

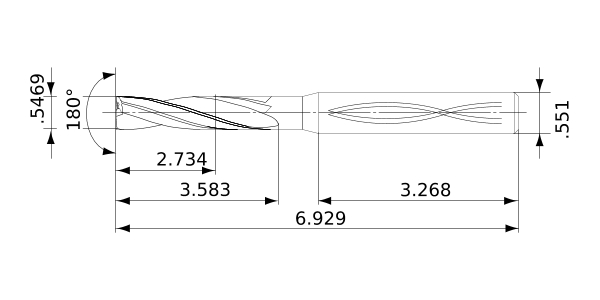

DC .5469
DCON .551
SIG 180°
OAL 6.929
LU 2.734
LCF 3.583
LS 3.268
FHA 27°
ld 5
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0011
Type of Coolant Internal
