VQLCSRB
（Corner radius, Long cut length, 5 flute, Irregular pitch flutes, Chipbreaker）

VQLCSRBD1600R600 EDP:23909212

Product Information

  • Chip breaker type end mill for efficient chip breaking capabilities that also provides good surface finishes.
  • A high rigidity Smart Miracle vibration damping end mill for high efficiency trochoidal milling.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length M

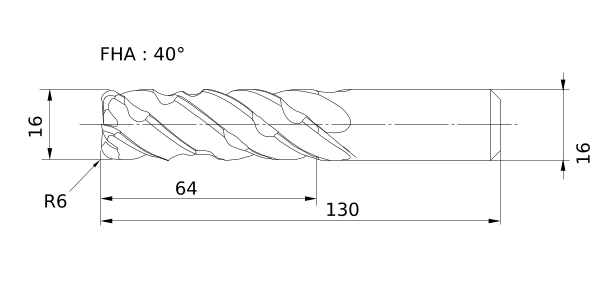

DC 16
DCONMS 16
LF 130
APMX 64
FHA 40°
RE 6
Peripheral effective cutting edge count: ZEFP 5
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.04
Coated VQ
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
