AJX14_INCH
(MULTI FUNCTIONAL MILLING)

AJXU14R0405E EDP:241171

Product Information

  • Special insert design with the use of 3 cutting edges.
  • High rigidity due to double clamp structure.
  • Suitable for high feed cutting.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock

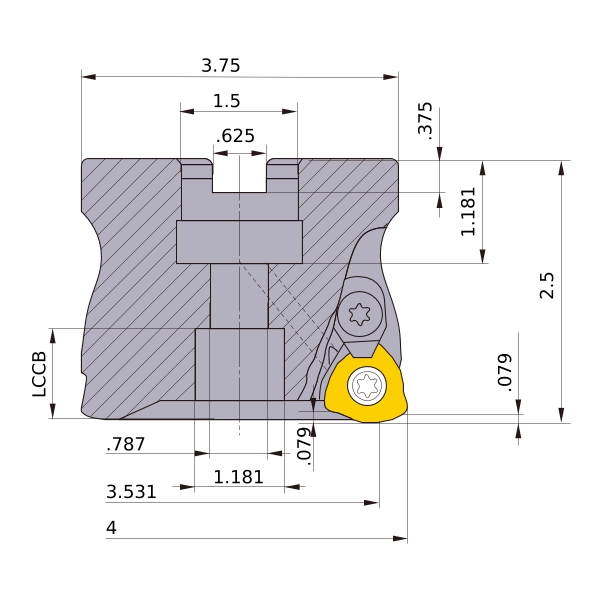

Unit of Length I
AZ .079
DC 3.531
DCX 4
DCON 1.5
DCSFMS 3.75
DAH .787
DCCB 1.181
RMPX 1.2
L8 .375
LF 2.5
CBDP 1.181
KWW .625
APMX .079
GAMP +8°
GAMF -3°
Peripheral effective cutting edge count: ZEFP 5
2D Model (DXF)
CAD data name Download
AJXU14R0405E
CAD

3D Detail Model (STP,STL)
CAD data name Download
AJXU14R0405E
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AJXU14R0405E_IR0_079
.079 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
