MS2XL
(End mill, Short cut length, 2 flute, Long neck)

MS2XLD0400N400 EDP:289705

Product Information

  • 2 flute long neck end mill.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Stock
Unit of Length M

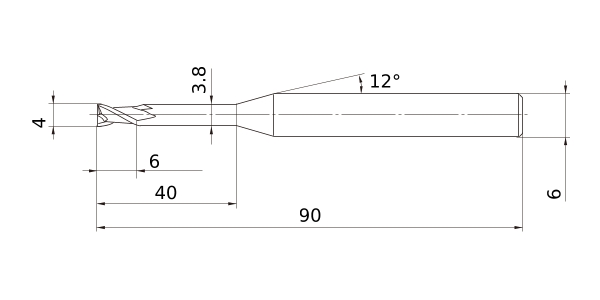

DC 4
DCON 6
DN 3.8
BHTA2 12°
LF 90
LU 40
APMX 6
FHA 30°
Peripheral effective cutting edge count: ZEFP 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated MS
2D Model (DXF)
CAD data name Download
MS2XLD0400N400
CAD

3D Light Model (STP,STL)
CAD data name Download
MS2XLD0400N400
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
