Wavy cutting edge design for good chip control.
Serration geometry for accurate insert location.

Diameter ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

Sales unit

1

Stock

Unit of Length

M

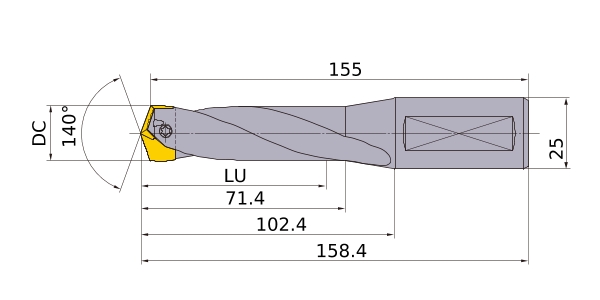

DCON

25

SIG

140°

LF

155

OAL

158.4

LH

102.4

LBX

71.4

ld

3

Cutting item count: CICT

1

Effective Cutting Edge

2

Type of Coolant

Internal

2D Model (DXF)
CAD data name	Download
