Wavy cutting edge design for good chip control.
Serration geometry for accurate insert location.

Diameter ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

Sales unit

1

Stock

Unit of Length

M

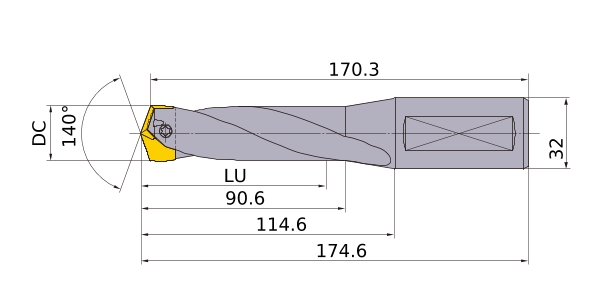

DCON

32

SIG

140°

LF

170.3

OAL

174.6

LH

114.6

LBX

90.6

ld

3

Cutting item count: CICT

1

Effective Cutting Edge

2

Type of Coolant

Internal
