The minimum cutting diameter is φ.390inch.
5°, 11° positive insert.
Excellent vibration resistance due to light dimple head.
Chip disposal is improved by having two channels for chip evacuation.
l/d is 3 to 6 times the diameter.

Diameter ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

ANSI

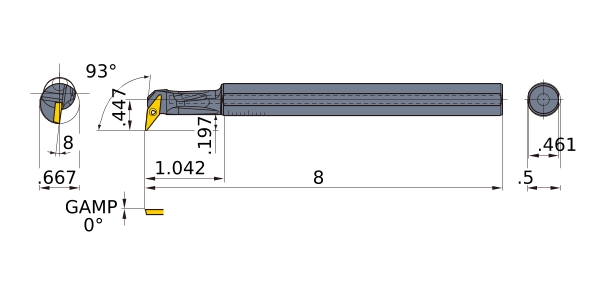

JX08R-SVUCR1.5

Sales unit

1

Hand

R

Stock

Unit of Length

I

DMIN

.667

DCON

.5

KAPR

93°

LF

8

LDRED

1.042

WF

.447

H

.461

WF2

.197

GAMF

8

RE

.016

Peripheral effective cutting edge count: ZEFP

1

Insert Number

VC__1.51.5
