The minimum cutting diameter is φ.390inch.
5°, 11° positive insert.
Excellent vibration resistance due to light dimple head.
Chip disposal is improved by having two channels for chip evacuation.
l/d is 3 to 6 times the diameter.

Diameter ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

ANSI

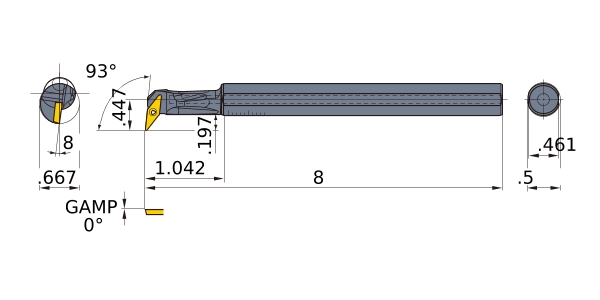

JX08R-SVUCL1.5

Sales unit

1

Hand

L

Stock

Unit of Length

I

DMIN

.667

DCON

.5

KAPR

93°

LF

8

LDRED

1.042

WF

.447

H

.461

WF2

.197

GAMF

8

RE

.016

Peripheral effective cutting edge count: ZEFP

1

Insert Number

VC__1.51.5

2D Model (DXF)
CAD data name	Download
M-FSVUCL-081_5-C	Disclaimer Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility. As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free. If you agree to this disclaimer, please select “Agree” below. Thank you for your understanding and cooperation.

2D Model (DXF)

CAD data name

Download

M-FSVUCL-081_5-C

3D Detail Model (STP,STL)
CAD data name	Download
M-FSVUCL-081_5-C	Disclaimer Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility. As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free. If you agree to this disclaimer, please select “Agree” below. Thank you for your understanding and cooperation.

3D Detail Model (STP,STL)

CAD data name

Download

M-FSVUCL-081_5-C

3D Light Model (STP,STL)
CAD data name	RE	Download
M-FSVUCL-081_5-C_IR0_016	.016	Disclaimer Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility. As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free. If you agree to this disclaimer, please select “Agree” below. Thank you for your understanding and cooperation.

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
