The minimum cutting diameter is φ.390inch.
5°, 11° positive insert.
Chip disposal is improved by having two channels for chip evacuation.
l/d is 3 to 6 times the diameter.
Excellent vibration resistance due to light dimple head.

Diameter ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

ANSI

JX10S-SVPBR2

Sales unit

1

Hand

R

Stock

Unit of Length

I

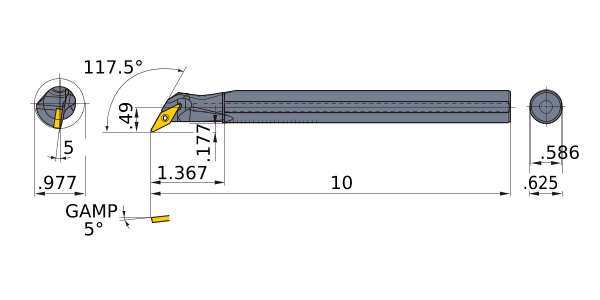

DMIN

.977

DCON

.625

KAPR

117.5°

LF

10

LDRED

1.367

WF

.49

H

.586

WF2

.177

GAMF

5

RE

.016

Peripheral effective cutting edge count: ZEFP

1

Insert Number

VB__22
