AJX
(MULTI FUNCTIONAL MILLING)

AJX14R634SA42L EDP:313306

Product Information

  • Economical due to the use of 3 cutting edges.
  • Suitable for high feed cutting.
  • Excellent chip disposal due to the standardization of coolant hole.
  • High rigidity due to the employment of double clamp mechanics.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length M

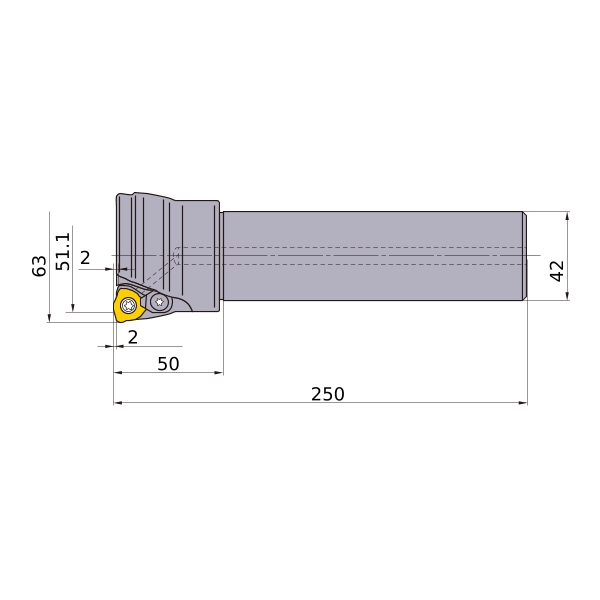

AZ 2
DC 51.1
DCX 63
DCON 42
RMPX 2.8
LF 250
LH 50
APMX 2
GAMP +8°
GAMF -3°
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
2D Model (DXF)
CAD data name Download
AJX14R634SA42L
CAD

3D Detail Model (STP,STL)
CAD data name Download
AJX14R634SA42L
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AJX14R634SA42L_MR2
2 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
