AJX
(MULTI FUNCTIONAL MILLING)

AJX14R503SA42S EDP:372154

Product Information

  • Economical due to the use of 3 cutting edges.
  • Suitable for high feed cutting.
  • Excellent chip disposal due to the standardization of coolant hole.
  • High rigidity due to the employment of double clamp mechanics.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length M

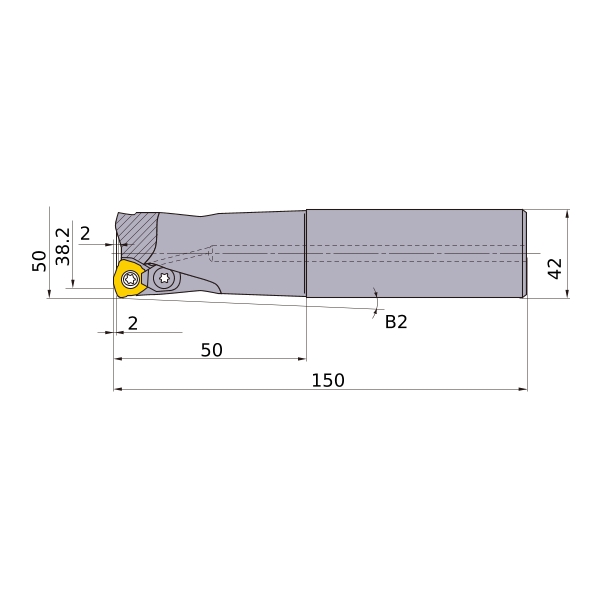

AZ 2
DC 38.2
DCX 50
DCON 42
RMPX 4.2
LF 150
LH 50
APMX 2
GAMP +8°
GAMF -4°
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
2D Model (DXF)
CAD data name Download
AJX14R503SA42S
CAD

3D Detail Model (STP,STL)
CAD data name Download
AJX14R503SA42S
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AJX14R503SA42S_MR2
2 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
